CE-BOND Technology

Annular flow redistribution for challenging cement placement.

CE-BOND is designed to reduce circumferential velocity imbalance in deviated, eccentric annuli and support improved low-side displacement when used with conventional centralizers.

The problem

Centralizers improve standoff, but residual low-side displacement risk can remain.

In deviated wellbores, casing often sits eccentrically despite centralization. Displacement fluids preferentially flow through the wider high side of the annulus, while the restricted low side can remain poorly swept. This can leave mud, solids or contaminated fluid behind the casing and increase the risk of a low-side cement channel.

Deviated openhole ยท eccentric casing
Diagram of eccentric casing in a deviated openhole with numbered markers: 1 high-side preferential flow above the pipe, 2 path of least resistance, 3 mud and solids retained on the restricted low side
Uneven flow distribution around the pipe driven by eccentricity โ€” the centralizer improves standoff but may not fully correct the velocity imbalance
  • 01
    Eccentric annulus

    Even with centralizers, the casing may remain offset from the hole centreline. This creates a wide high-side flow path and a restricted low-side annular gap.

  • 02
    Preferential high-side flow

    During displacement, fluids naturally follow the path of least resistance. The high side receives most of the flow, while the low side sees reduced velocity.

  • 03
    Low-side channel risk

    If mud, solids or contaminated fluid remain on the low side, cement may not fully replace the displaced fluid, increasing the risk of a continuous channel behind casing.

How CE-BOND works

Redistribute annular flow where eccentricity creates the largest imbalance.

A series of CE-BOND diverters creates local flow redistribution around the casing. In eccentric annuli, displacement flow naturally favors the wider high side. CE-BOND introduces a controlled diversion effect, forcing part of the flow toward the restricted low side. When run in series with conventional centralizers, this increases low-side velocity and improves the probability of effective mud removal before cement placement.

Mechanism ยท CE-BOND flow diverters in series
CE-BOND flow diverters in series on casing redirecting annular flow toward the low side to improve circumferential cement placement
Original CE-BOND drawing showing flow diverters installed in series on the casing to improve low-side displacement and circumferential cement placement.
01

Flow redistribution

CE-BOND redirects part of the annular flow from the high side toward the low side of the eccentric annulus.

02

Improved low-side sweep

The diverted flow helps mobilize mud, solids and contaminated fluid that can otherwise remain on the low side before cement placement.

03

Improved conditions for circumferential cement placement

Improved low-side displacement supports better circumferential cement coverage and reduces the likelihood of a continuous channel behind casing.

Positioning

CE-BOND is not a centralizer replacement. It is an annular flow diverter, run with conventional centralizers.

Centralizers improve standoff. CE-BOND addresses the remaining flow distribution problem โ€” the poor low-side displacement regime that standoff alone does not always correct. Good standoff design remains a requirement of every program.

Orientation

Buoyancy-oriented to place the diversion effect on the high side.

CE-BOND uses buoyant elements โ€” syntactic foam rated for downhole pressure โ€” to orient the diverter toward the high side of the casing in deviated wellbores. This positions the flow diversion geometry so that annular flow is redirected toward the low side of the hole. Orientation should be reviewed against well inclination, casing rotation risk, centralizer program and job-specific running conditions.

Orientation testing

Self orientation demonstrated physically.

The self-orientation mechanism requires no downhole activation.

Design principle

Buoyancy helps orient CE-BOND toward the high side of the annulus.

CE-BOND uses buoyant material and asymmetric geometry to orient the tool toward the high side in deviated wellbores. The geometry increases resistance in the preferential high-side flow path, encouraging redistribution toward the low side. Application suitability is reviewed against inclination, geometry, fluid properties and operational constraints.

Self orienting No activation Used with centralizers
Validation

Physical testing and flow modelling support the same redistribution mechanism.

CE-BOND has been evaluated using physical flow-loop testing and annular-flow modelling. The two methods serve different purposes: the flow loop demonstrates displacement behaviour, while modelling supports mechanism understanding and application design.

Physical flow-loop testing

Observe the displacement behaviour directly.

The test video demonstrates the effect of CE-BOND on low-side cuttings and debris removal under the tested geometry and flow conditions.

Annular velocity distributionCFD comparison
CFD velocity comparison with and without CE-BOND
Same colour scale. The comparison illustrates redistribution of the circumferential velocity field. CFD is design support and mechanism evidence, not a downhole velocity measurement.
The engineering objective is not to create the highest possible local velocity. It is to reduce the circumferential velocity imbalance that can leave the restricted low side poorly displaced.
Design inputs

Typical information reviewed for a CE-BOND application.

Not every item is required for an initial assessment. The review is tailored to the available well data and the specific cement placement challenge.

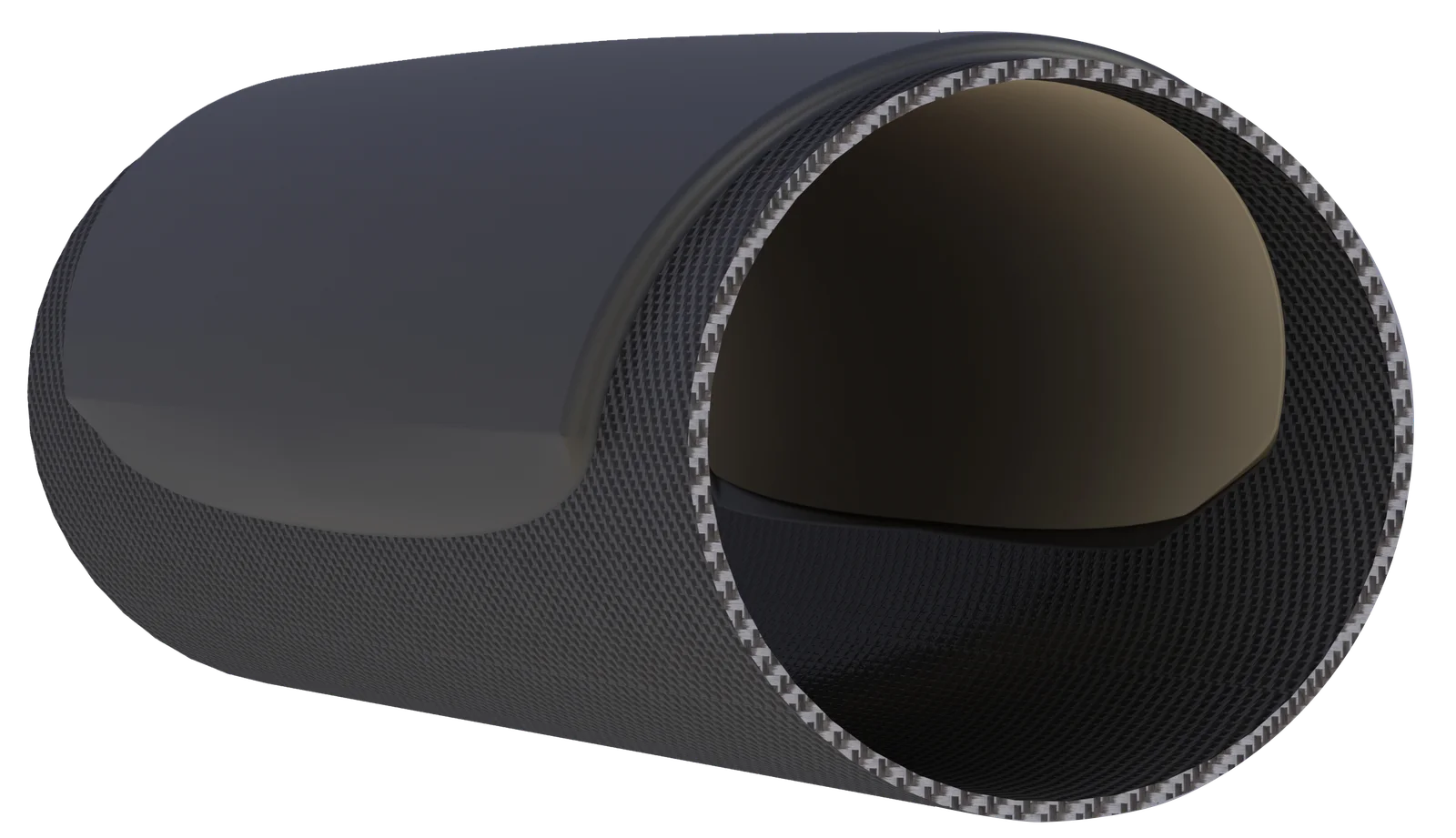

CE-BOND composite construction cutaway
Application engineering

Designed against the actual casing, hole and cementing envelope.

Tool geometry, clearance, placement, spacing and hydraulic effect are reviewed for the specific application. Centralization, pump rate, fluid properties, running constraints and the interval at risk remain part of the overall cementing design.

01Casing size and hole geometry
02Inclination across the target interval
03Centralizer type, spacing and expected standoff
04Mud, spacer and cement program
05Pump rate and displacement schedule
06Available cement evaluation or offset well data
Installation

Installed during casing preparation, with no downhole activation step.

CE-BOND slips over the casing body and is retained axially between two stop collars. Installation can be completed offline in the pipe yard before the casing or liner is mobilized to the rig.

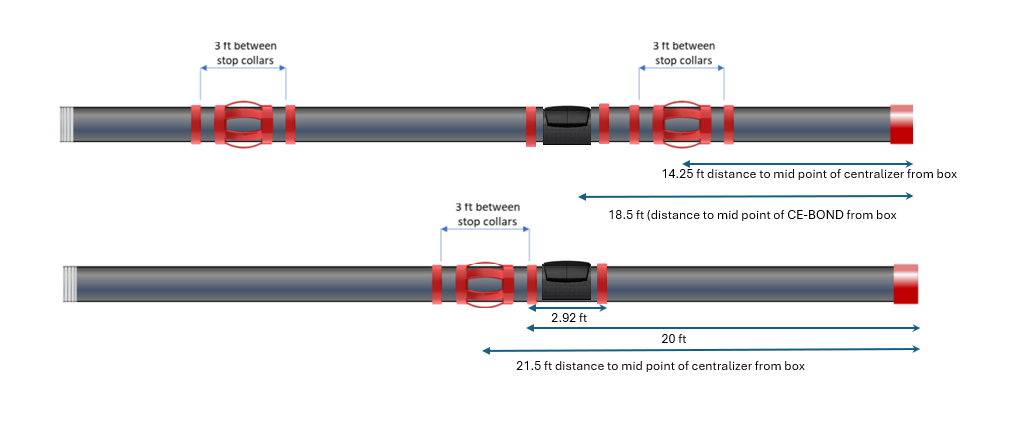

Example installation arrangementCE-BOND + centralizers
CE-BOND installation schematic showing the tool retained between stop collars and positioned relative to casing centralizers
Example configuration only. Final placement and spacing are set for the specific well application.
Operational integration

Run as part of the casing or liner string.

The tool has no powered, hydraulic or mechanically actuated components and requires no downhole activation. Clearance, runability and hydraulic effects are checked during the application review.

Slip-on 2 stop collars Offline preparation
CE-BOND on casing ยท field and yard photos
CE-BOND annular flow diverter installed on casing
CE-BOND annular flow diverter fitted on casing with stop collars
Applications

Applications where low-side displacement matters.

CE-BOND is applied where eccentricity and low-side displacement are recognized risks to cement placement and isolation.

Primary cementing in deviated wells

Support low-side displacement

Improves low-side sweep in eccentric annuli where conventional displacement may leave mud or contaminated fluid behind casing.

Highly inclined & horizontal sections

Target the channel-prone intervals

Targets intervals where gravity, eccentricity and low-side solids retention increase channel risk.

P&A barrier cementing

Support challenging barrier cement placement

Potential application where annular cement placement is important to a planned barrier, subject to the operatorโ€™s barrier design and acceptance criteria.

Known poor-bond intervals

Target recurring displacement risk

Applicable where offset wells or previous cement evaluation logs show recurring low-side channeling.

Casing & liner cementing

Run as part of the string

Designed for casing or liner deployment, subject to job-specific clearance, runability and hydraulic review.

Operator value

The value is an additional hydraulic control for difficult cement placement.

CE-BOND is intended to address residual circumferential velocity imbalance in deviated, eccentric annuli. Its value is strongest where conventional centralization and displacement design still leave a recognized low-side placement risk.

01 Reduced high-side flow dominance
02 Improved low-side displacement conditions
03 More uniform circumferential flow distribution
04 Self orienting integration with casing or liner
05 Application-specific placement and spacing
06 Field evidence supported by cement evaluation
